Heat-resistant coating pathways for smoke ducts, exhaust pipes, flues, fireplace doors, and high-temperature metal surfaces.

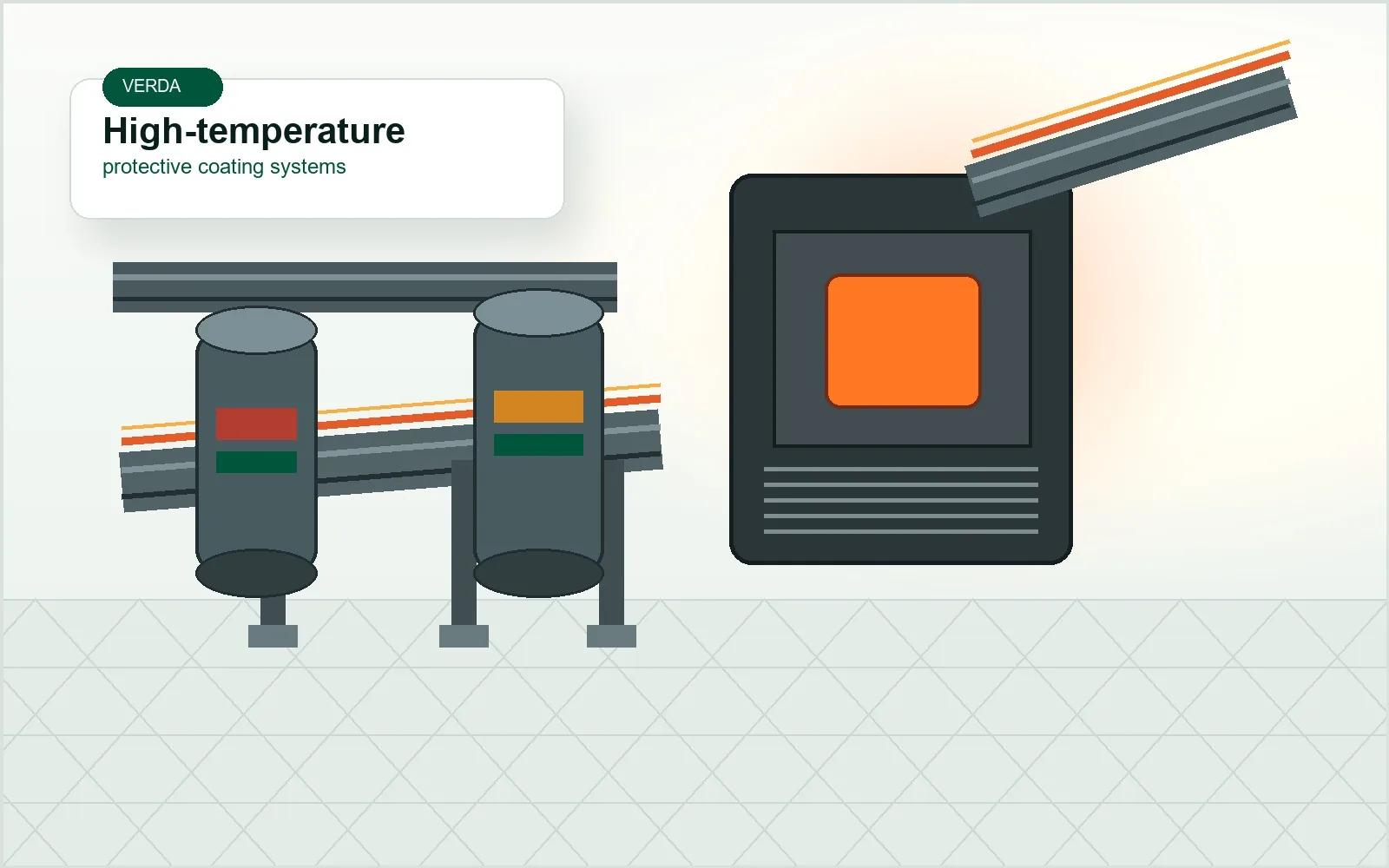

High-Temperature Protective Coating Systems
VERDA provides coating solutions to protect flues, exhaust pipes and industrial equipment exposed to high temperatures.
Application Areas
Explore coating solutions for industrial heating, metallurgy, power generation and equipment maintenance.
Product selection support for chimneys, heating equipment, sauna stoves, heat ducts, and industrial hot metal equipment.
High-temperature coating discussion for metallurgical machinery, petroleum, chemical, thermal power, textile, printing, and dyeing equipment.
Insulating coating support for electronic components, mechanical equipment, new energy vehicle electrical parts, and battery accessories.
High-temperature easy-clean and non-stick coating route for chimneys, pipes, heating equipment, and heat-exposed industrial equipment.
Quote-ready support for distributors, OEM/private label buyers, and contractors handling high-temperature repair or production coating projects.
System Selection
Choose a coating system based on operating temperatures, exposure conditions and functional requirements.

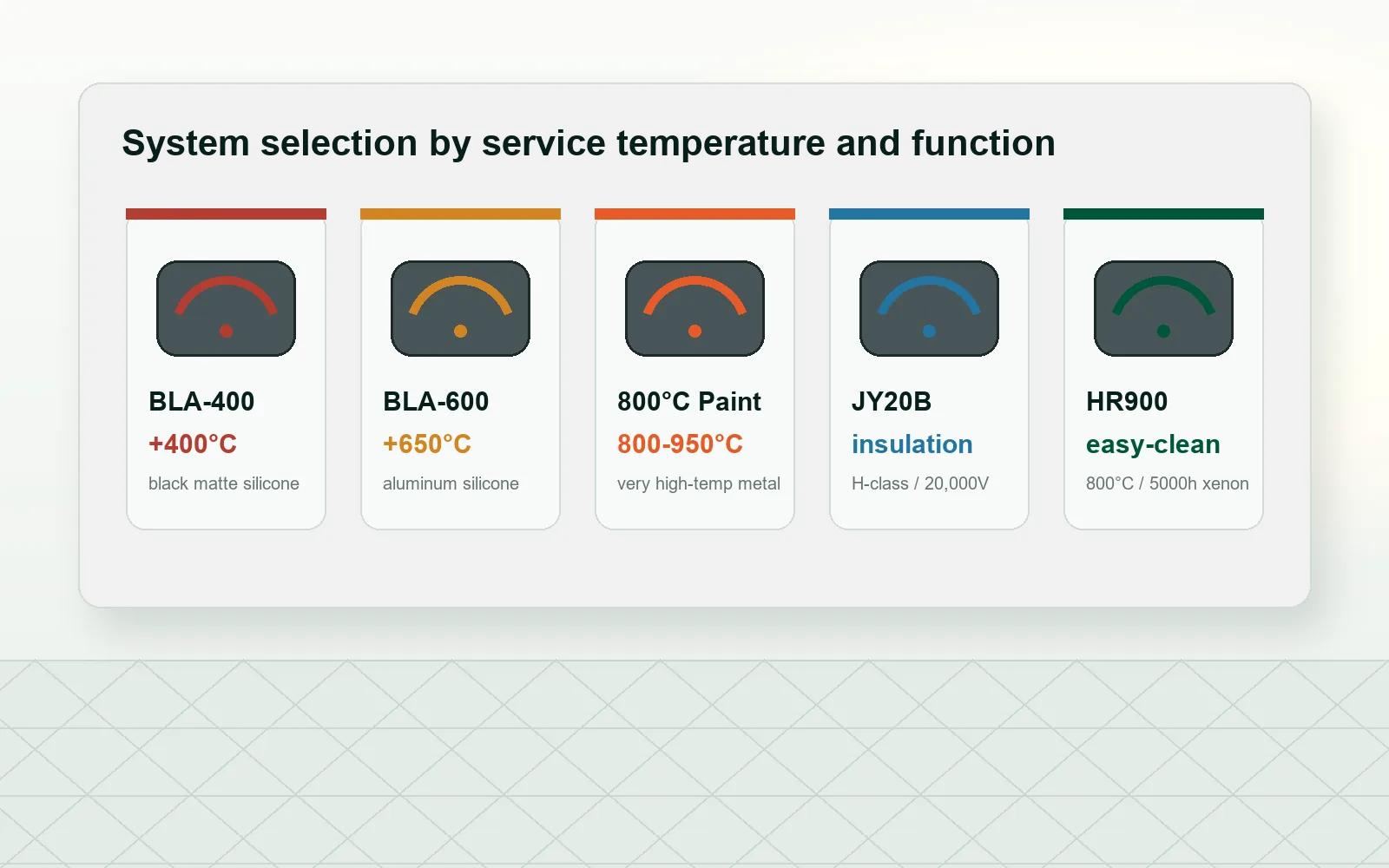

BLA-400 for black matte silicone coating up to +400°C dry heat BLA-600 for aluminum silicone coating up to +650°C dry heat on bare steel 800°C high-temperature paint for very high-temperature industrial equipment BAYD-JY20B and BAYD-HR900 for insulation or easy-clean special functions
Key Selection Questions
Consider continuous and peak operating temperatures, heating and cooling cycles, and curing conditions when selecting your coating system.
Service Temperature
Confirm whether the project needs +400°C dry heat, +650°C dry heat, 800-950°C resistance, insulation, or easy-clean performance.
Dry Heat vs. Other Exposure
BLA-400 and BLA-600 temperature ratings are dry heat references. Water, oil, chemicals, humidity, and thermal cycling should be reviewed separately.
Surface Preparation
Steel surfaces may need cleaning, degreasing, salt removal, blast cleaning to Sa2.5, phosphating, or roughening depending on the product route.
Film Thickness & Cure
High-temperature systems are thin-film products. Target dry film thickness, natural drying, heat curing, and final hardness timing must be confirmed.
Application Method
Spray, airless spray, air spray, brush, roller, compressed air spray, and electrostatic spray are product-specific and should not be treated as interchangeable.
Special Functions
Electrical insulation, non-stick behavior, cleanability, weathering resistance, and adhesion on metal substrates should be matched to the exact product.
Recommended Product Systems
Explore coating options for heat resistance, electrical insulation and easy-clean surfaces.
Black Matte Heat-Resistant Finish
For heat-exposed steel surfaces such as fireplace doors, flues, exhaust pipes, sauna stoves, and hot metal equipment.
- BLA-400 Organic Silicone High-Temperature Coating
- Dry heat resistance up to +400°C
- Black, matte, one-component coating
- Recommended dry film thickness: 15 microns
Aluminum Metallic Heat Protection
For high-temperature steel exteriors and heat equipment where aluminum metallic appearance and higher dry-heat resistance are required.
- BLA-600 Organic Silicone High-Temperature Coating
- Dry heat resistance up to +650°C on bare steel
- Aluminum color with metallic gloss
- Recommended dry film thickness: 25 microns
800-950°C Industrial Equipment Protection
For mechanical equipment and steel components in metallurgy, petroleum, chemical, thermal power, textile, and printing or dyeing equipment.
- 800°C High-Temperature Resistant Paint
- Modified silicone resin with high-temperature pigments
- Selectable color, matte finish
- Recommended dry film thickness: 20-35 microns
Insulation or Easy-Clean Heat Surface
For electronic parts, new energy components, chimneys, pipes, heating equipment, and heat-exposed surfaces requiring special function.
- BAYD-JY20B High-Temperature Insulating Coating
- BAYD-HR900 High-Temperature Easy-Clean Coating
- Spray routes for controlled 15-25 micron film
- Function-led selection by insulation, non-stick, or cleanability need
Application Workflow
Follow the key steps in surface preparation, application, curing and inspection.
Confirm Temperature Profile
Define peak temperature, continuous temperature, dry heat condition, thermal cycle, heating frequency, and whether insulation or easy-clean function is required.
Review Substrate
Confirm steel, zinc silicate coated steel, aluminum, metal component, electronic component, pipe, chimney, heating equipment, or repaired old coating.
Prepare the Surface
Remove oil, grease, salt, dirt, dust, rust, and loose coating. Use blast cleaning, phosphating, degreasing, or roughening where the selected product requires it.
Prepare the Coating
Stir, redisperse, thin, filter, or mix according to product requirements. JY20B and HR900 should be filtered through 150 mesh after redispersion.

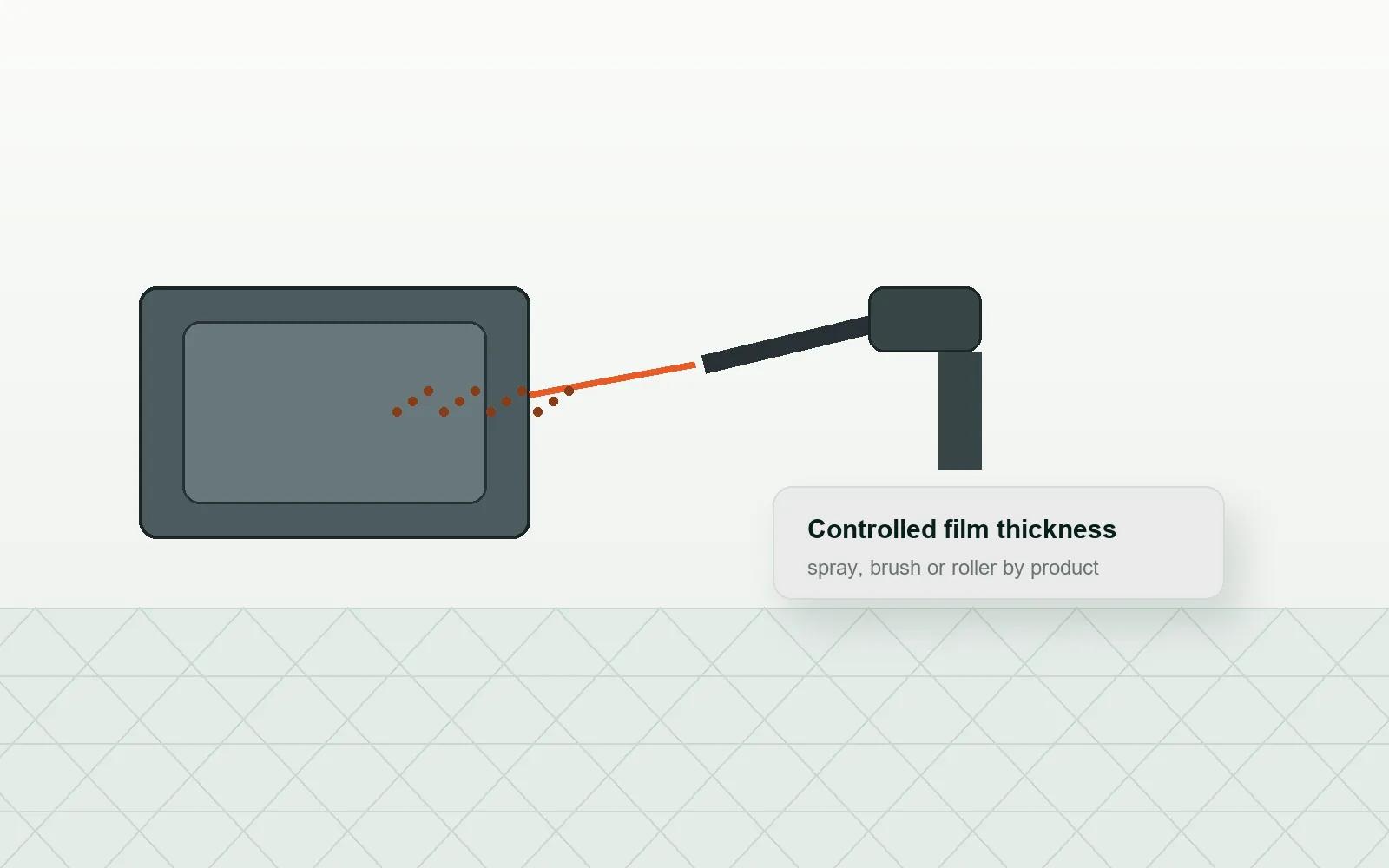

Apply Thin Film
Apply by the verified method for the selected product, such as airless spray, air spray, brush, roller, compressed air spray, or electrostatic spray.
Dry, Cure & Inspect
Confirm dust dry, touch dry, recoat window, heat-curing condition, final hardness timing, appearance, adhesion, and readiness for service.
Suitable Substrates
Identify compatible coating systems based on your substrate, existing coating and surface preparation conditions.
Steel surfaces prepared to Sa2.5 where high-temperature silicone coatings or very high-temperature paint are being considered.
BLA-400 and BLA-600 can be discussed with zinc silicate surfaces where cleaning, damage repair, and recoat window are confirmed.
Smoke ducts, exhaust pipes, fireplace doors, sauna stoves, and hot steel parts exposed to dry heat.
Metallurgy, petroleum, chemical, thermal power, textile, printing, dyeing, and power-related mechanical equipment.
Electronic industrial parts, mechanical equipment, new energy vehicle electrical components, and battery accessories requiring insulation.
Industrial chimneys, pipelines, heating equipment, and metal substrates requiring high-temperature cleanability or non-stick performance.
Selected JY20B and HR900 applications describe roughening aluminum substrates with 60#-100# aluminum oxide to Ra 2.0-3.5 microns.
Repair or repainting projects where old coating condition, cleaning feasibility, adhesion, and heat exposure must be reviewed first.

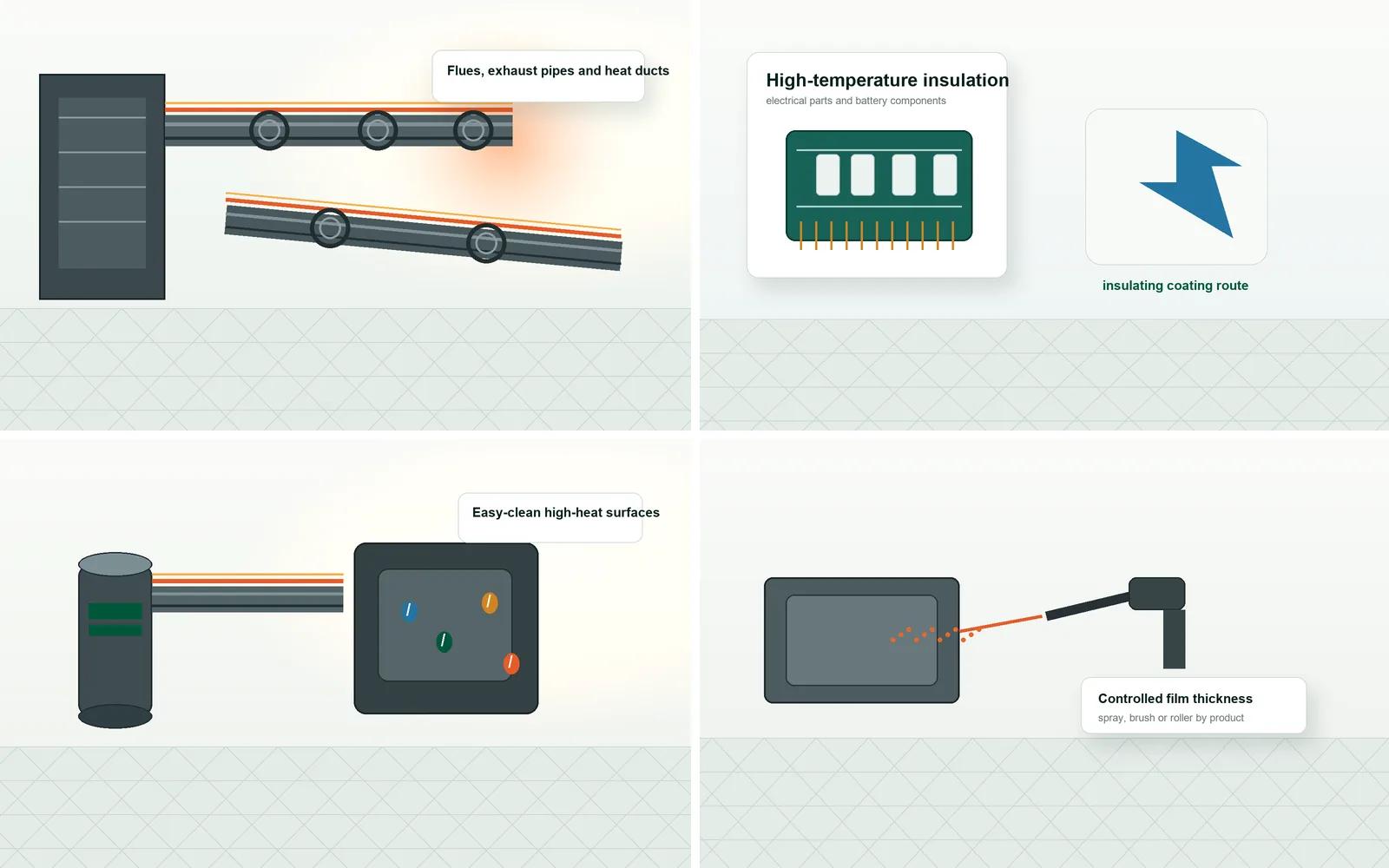

Application Scenarios
Discover protection requirements and coating options for exhaust systems, heating equipment and electrical components.
Case Type 01

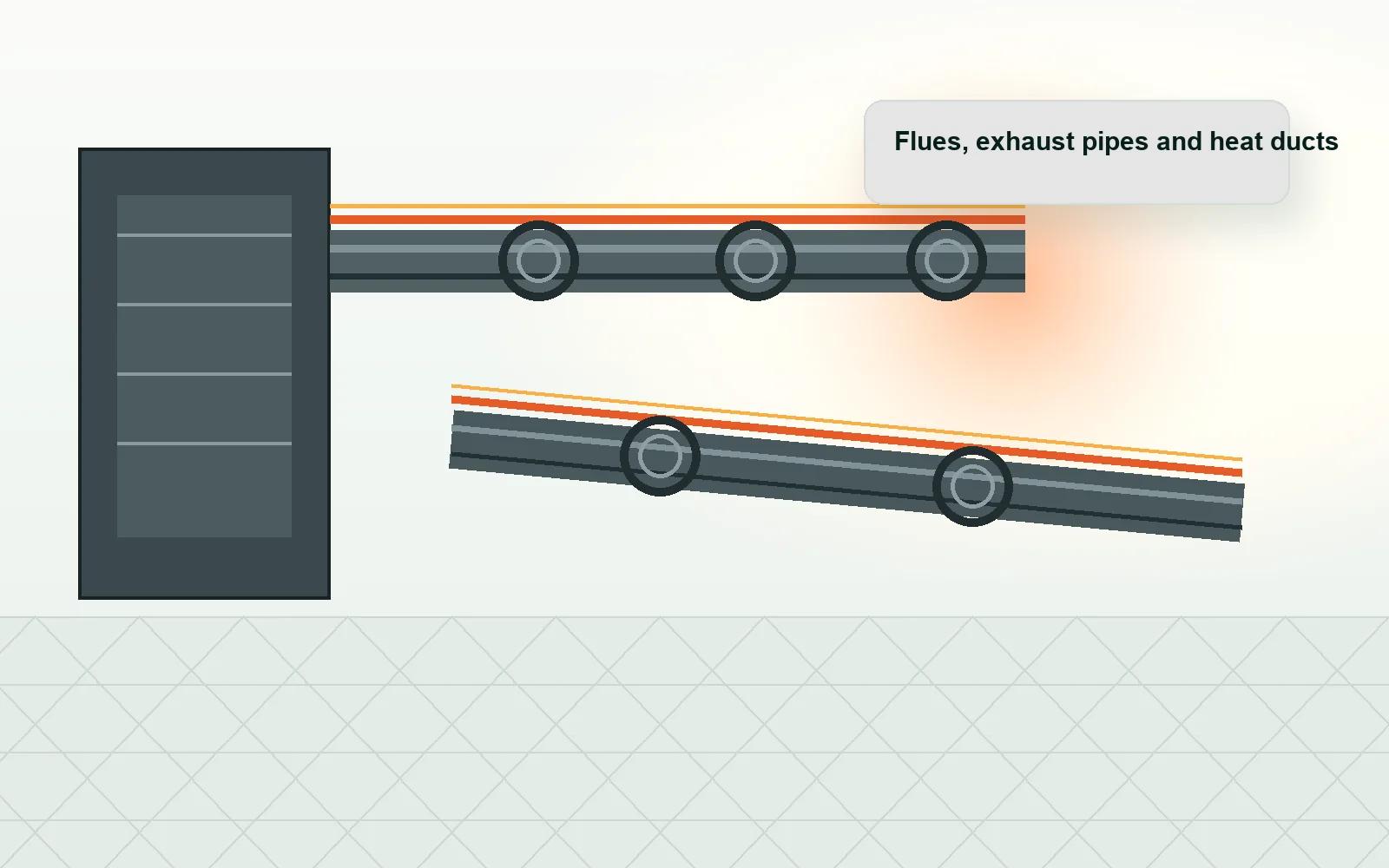

Flues, Exhaust Pipes & Heat Ducts
For fireplace doors, flues, exhaust pipes, sauna stoves, and hot metal surfaces requiring silicone high-temperature coating.
Suggested path: BLA-400 / BLA-600
Case Type 02
Metallurgy & Thermal Equipment
For high-temperature protection of mechanical equipment and steel components in metallurgy, petroleum, chemical, thermal power, textile, and printing or dyeing equipment.
Suggested path: 800°C High-Temperature Resistant Paint
Case Type 03

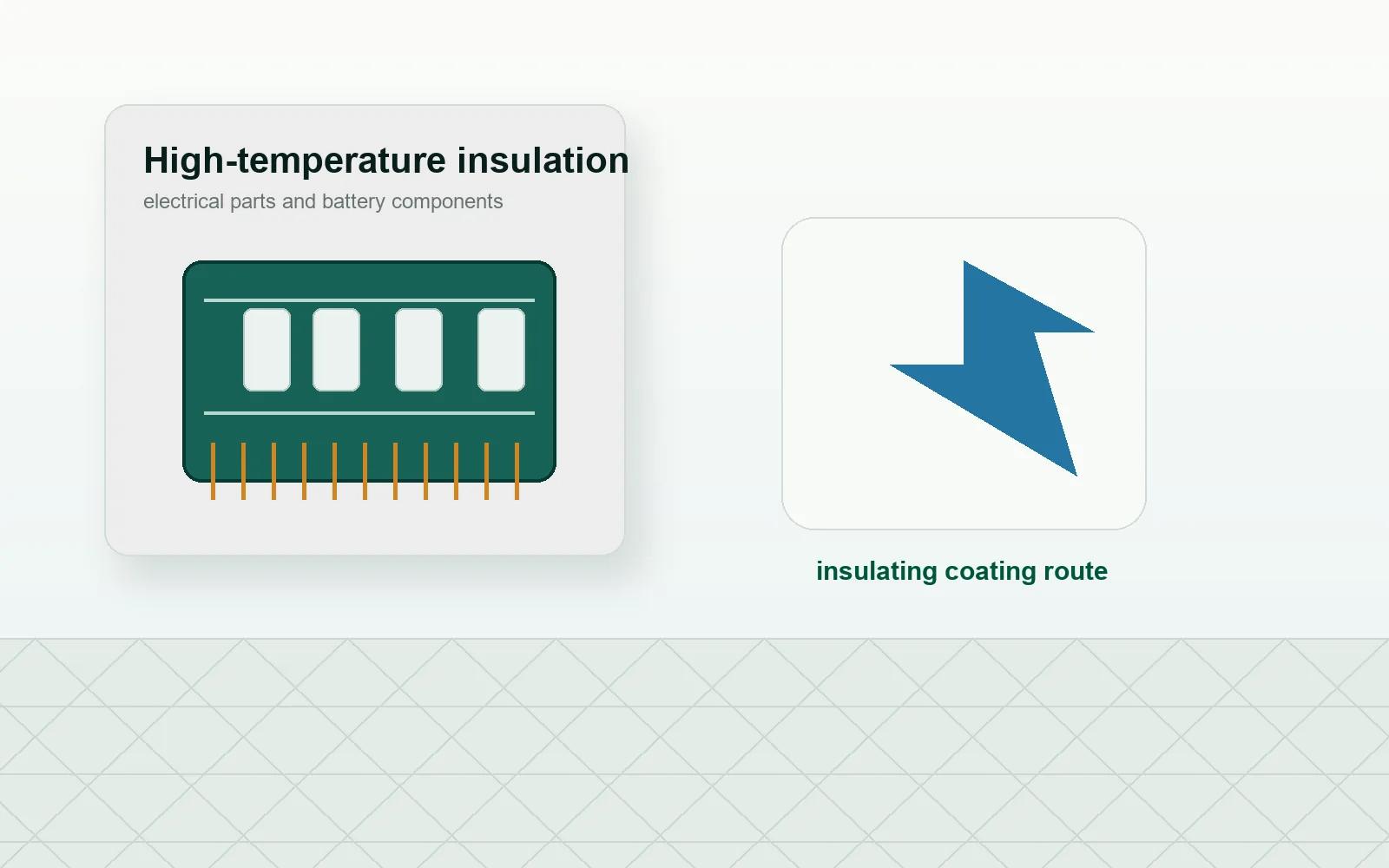

Electrical Insulation Components
For electronic components, mechanical equipment, new energy vehicle electrical parts, and battery accessories requiring heat resistance and insulation.
Suggested path: BAYD-JY20B
Case Type 04

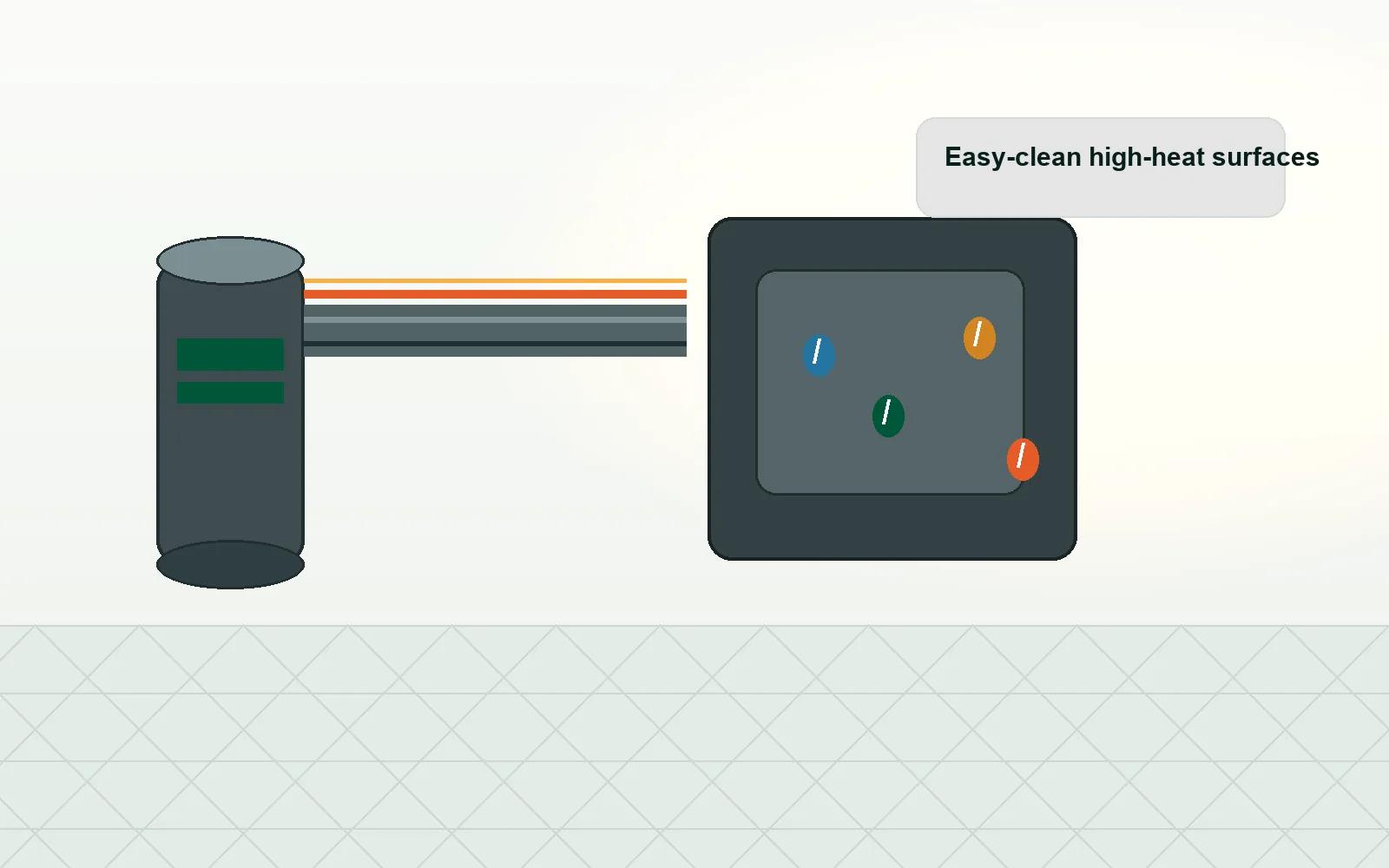

Easy-Clean Heat Equipment
For chimneys, pipes, heating equipment, and metal surfaces requiring high-temperature resistance, non-stick behavior, and easy-clean performance.
Suggested path: BAYD-HR900Product Selection Matrix
Compare service temperatures, performance features and application requirements to select products for your project.
Organic Silicone High-Temperature Coating
Heat-resistant silicone resin coating for steel surfaces exposed to high temperature. Dry heat resistance up to +400°C. Black, matte, one-component. Solids by mass 19%, volume solids 34%, density 1.1 kg/L. Recommended dry film thickness 15 microns; theoretical coverage 12.7 m²/L.
Organic Silicone High-Temperature Coating
Heat-resistant silicone aluminum coating for high-temperature steel exteriors. Dry heat resistance up to +650°C on bare steel and +400°C on zinc silicate coating. Aluminum color, metallic gloss, one-component. Solids by mass 51%, volume solids 34%, density 1.2 kg/L. Recommended dry film thickness 25 microns; theoretical coverage 13.6 m²/L.
High-Temperature Resistant Paint
Modified silicone resin coating with high-temperature resistant pigments and organic solvents. Used for high-temperature protection of mechanical equipment and steel components in metallurgy, petroleum, chemical, thermal power, textile, printing and dyeing, and power equipment. Temperature resistance listed up to 800-950°C. Color selectable, matte. Volume solids 35%; recommended dry film thickness 20-35 microns.
High-Temperature Insulating Coating
Inorganic high-temperature insulating coating composed of multiple polymer materials. Designed for heat-resistant and insulating scenarios, including electronic components, mechanical equipment, new energy vehicle electromagnetic electrical parts, and battery accessories. Insulation reaches H-class reinforced type, withstands 20,000V, and temperature resistance is listed up to 800°C. Black liquid, weight solids 25.5-35.5%, viscosity 20.0-45.0 seconds, shelf life 6 months.
High-Temperature Easy-Clean Coating
Self-drying one-component silicone fluorinated resin coating for high-temperature, corrosion-resistant, non-stick, and easy-clean applications. Used for industrial equipment such as chimneys, pipes, and heating equipment, with good adhesion to various metal substrates. Temperature resistance is listed up to 800°C; weathering performance includes 5000h xenon aging. Gray liquid, weight solids 30.5-35.5%, viscosity 20.0-45.0 seconds, shelf life 6 months.
Final product selection should be confirmed against the current TDS/SDS, actual service temperature, substrate condition, surface preparation, application method, and local safety requirements.
Commercial & Technical Support
VERDA offers selection advice, technical documents and samples for project buyers, distributors and private-label partners.
High-temperature product route selection TDS, SDS, sample and color discussion Insulation and easy-clean project screening Distributor, contractor and OEM/private label support
Inquiry Requirements
Share your operating temperatures, substrate condition and estimated quantities for coating recommendations and a quote.
Country, buyer role, project type, target market, estimated quantity, color requirement, document needs, and schedule.
Peak temperature, continuous temperature, dry heat condition, thermal cycle, heating frequency, and expected service environment.
Steel, zinc silicate coated steel, aluminum, electronic component, pipe, chimney, heating equipment, old coating, rust, oil, dust, and surface preparation method.
Distributor supply, contractor purchase, wholesale order, OEM/private label, samples, TDS, SDS, color, packaging, and export needs.
01Request a Quote
For price, quantity, shipping, samples, and purchasing discussion.
02Ask for Technical RecommendationFor product route, temperature, substrate, film thickness, curing condition, and application method review.
03Send Project DetailsFor asset photos, old coating condition, service environment, required function, product interest, and buyer role.
